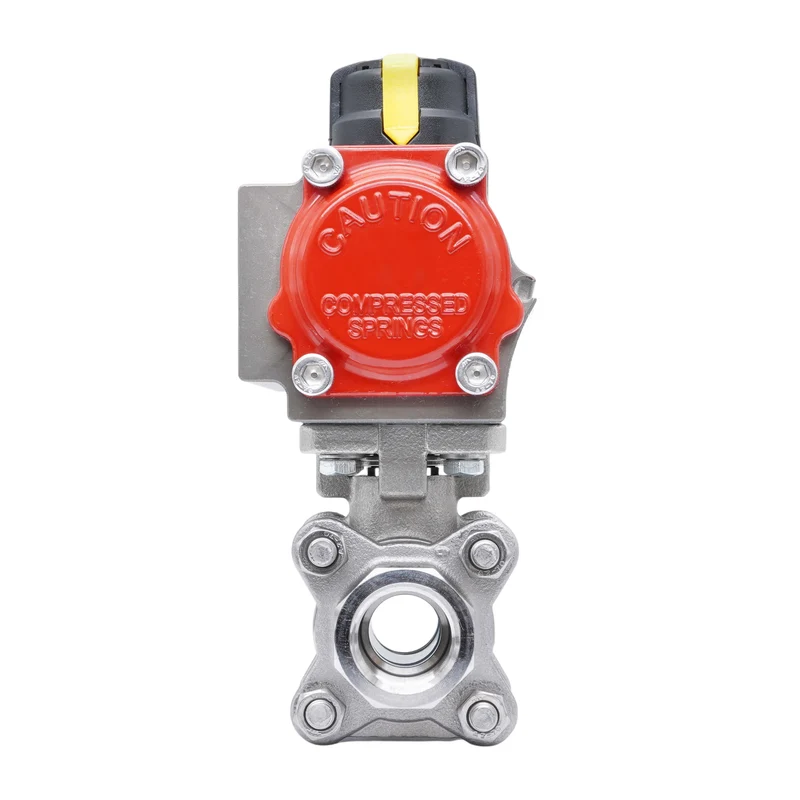

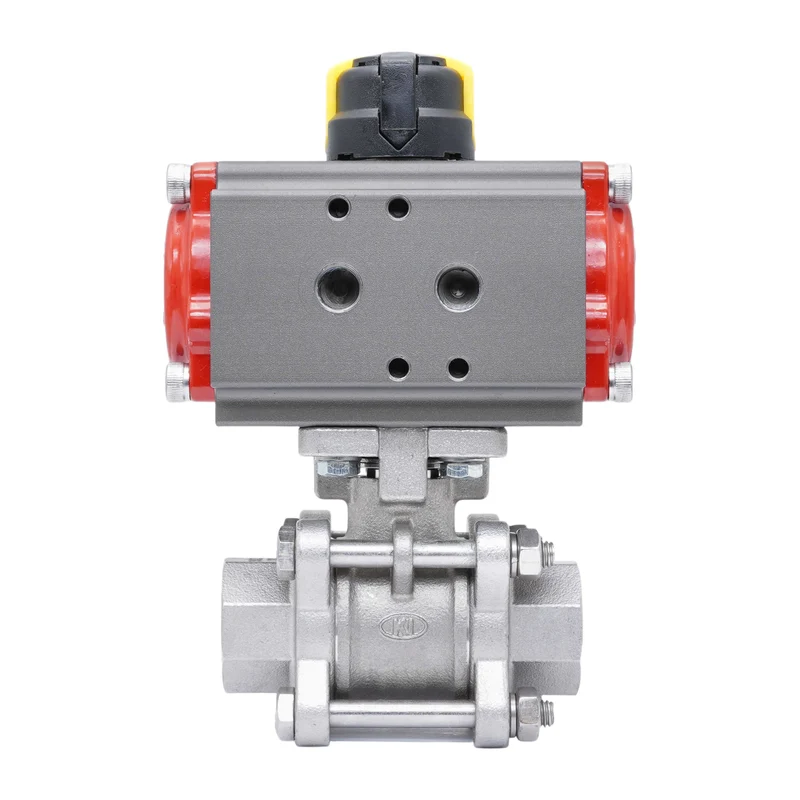

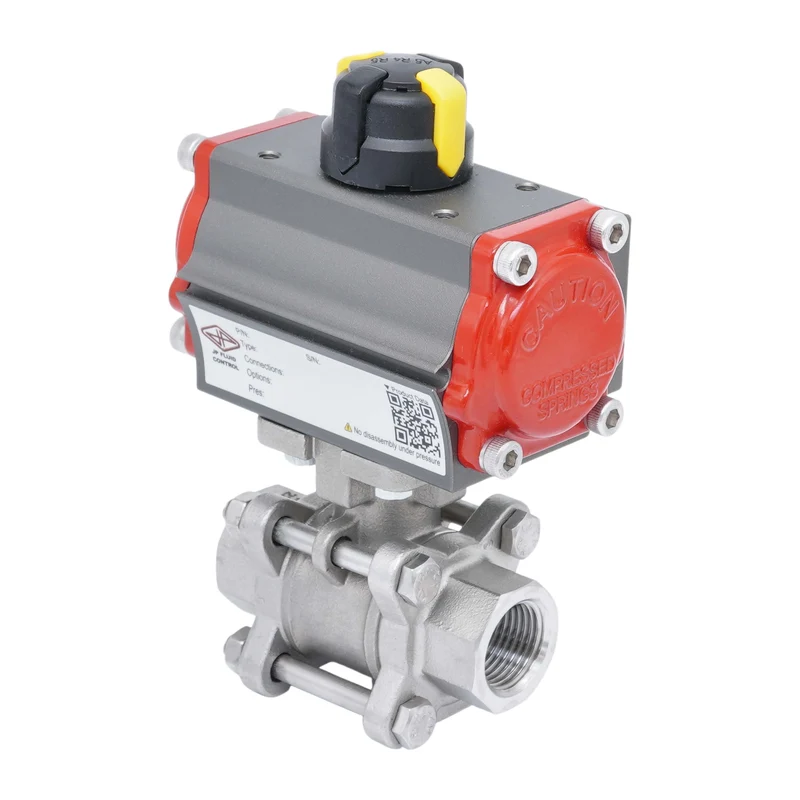

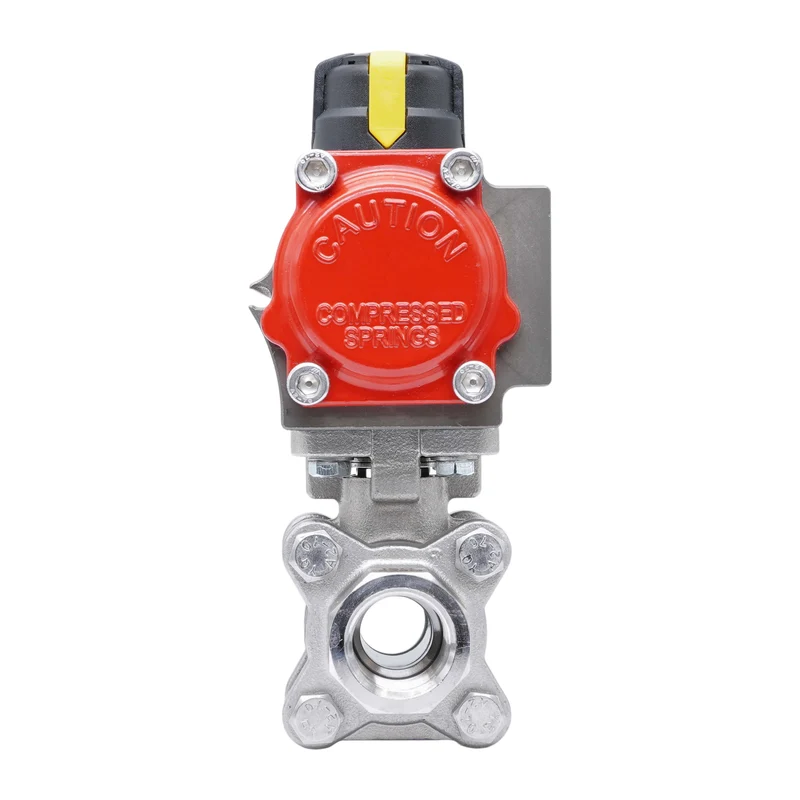

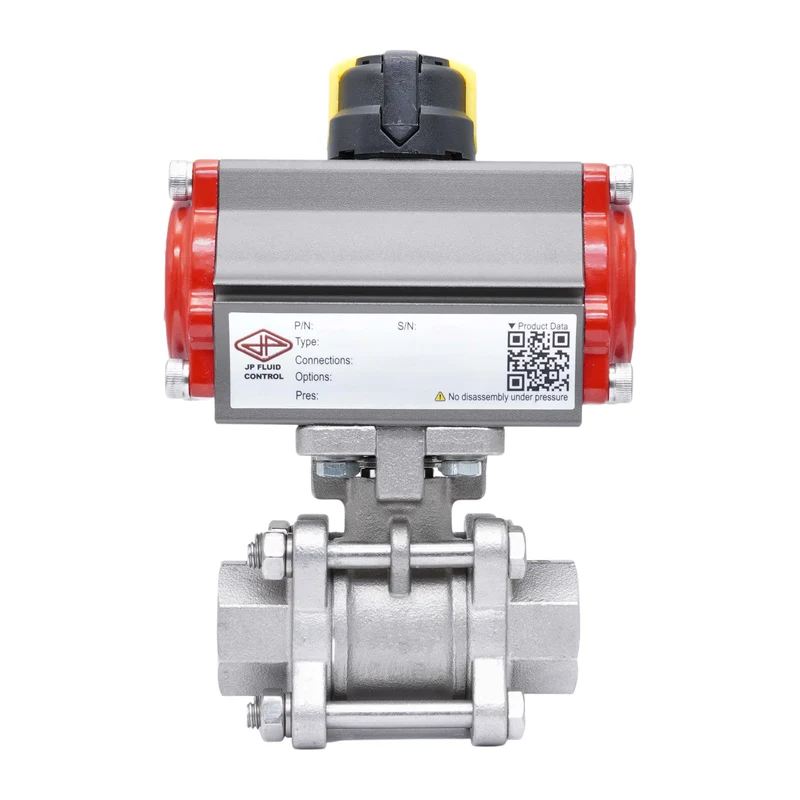

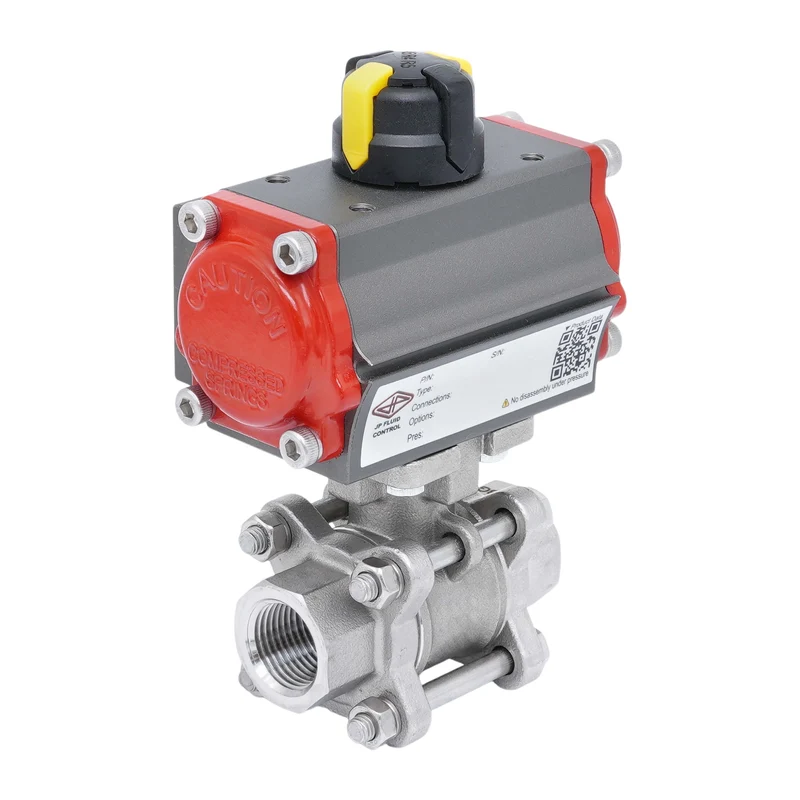

Vanne À Bille Pneumatique G1/4'' Acier Inoxydable Fermeture Par Ressort

This 2-way ball valve is pneumatically actuated, featuring a 10 mm bore size and G1/4 inch threaded connections. It is suitable for medium temperatures from -20 to 180°C (-4 to 356°F) and pressures up to 63 bar (914 psi). The Kv value is 6 m³/h (Cv=7). Kv expresses the flow rate of water in m3/h at a one bar pressure drop.

The pneumatic input range is 3–8 bar (43–116 psi). The valve body is made of stainless steel with a PTFE seal, making it suitable for various aggressive and corrosive media.

The actuator features a robust, spring closed rack-and-pinion mechanism with a 35-micron hard-anodized aluminum body. It is compatible with ISO 5211 F03/F05/F07 valves and includes BSPP air ports for air supply and return. Additionally, it features a Namur 1/4 inch interface for solenoid valves and an 80 x 30 mm interface for VDI/VDE 3845 limit switch boxes. Comes unassembled, including ball valve (BL2SA3-014), actuator (V3JKZ/PR03A), and mounting accessories.
