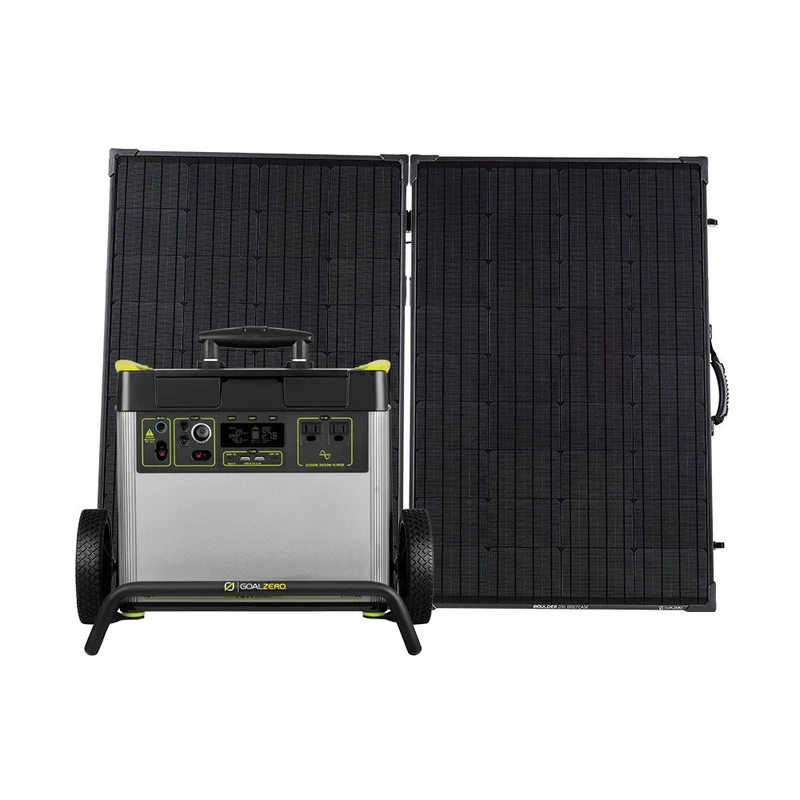

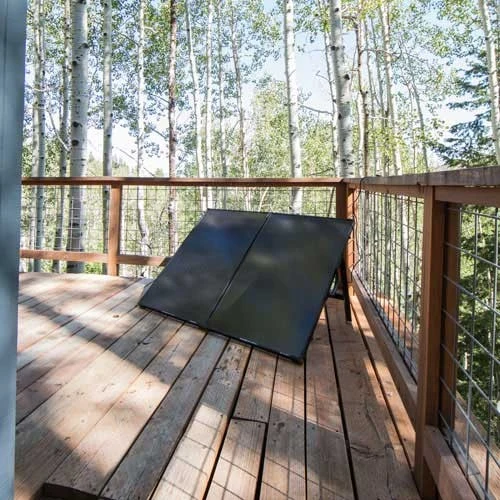

Yeti 3000X + Boulder 200 Solar Generator

short

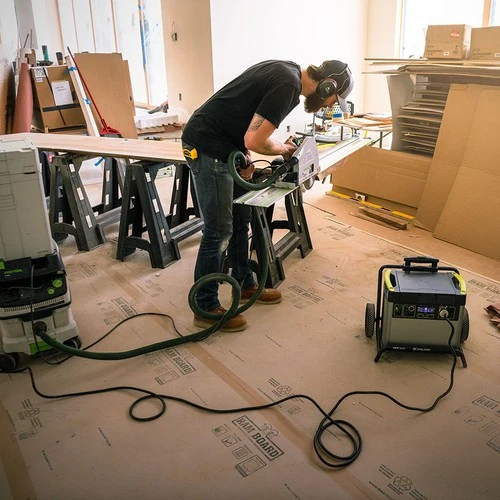

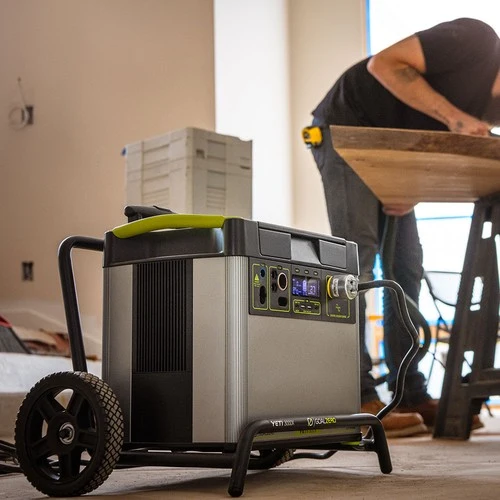

Pair the Yeti 3000X with the Boulder 200 Briefcase for unlimited solar power. Equip your cabin, yurt, or workshop with a kit built to run everything from fridges and air conditioners to electric bikes and wood-fired grills.

specs

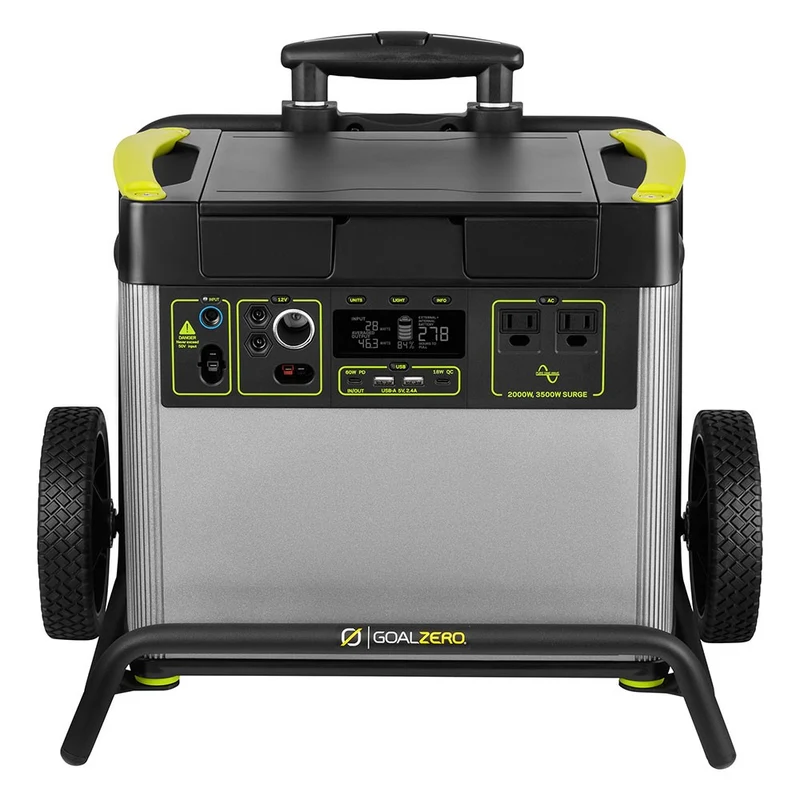

1. 12V CAR PORT

   12V, up to 13A (160W max), regulated

2. (2X) 120V AC INVERTER

   120VAC 60Hz 16.5A (2000W,3500W surge)

3. (2X) 6MM OUTPUT PORTS

   12V, up to 10A (120W max), regulated

4. 8MM CHARGE PORT

   14-50V, up to 10A (150W max)

5. HEIGHT POWER CHARGE PORT

   14-50V, up to 50A (600W max)

6. 12V HIGH POWER PORT

   12V, up to 360A (360W max), regulated

7. USB-C PD PORT

   5-20V, up to 3.0A (60W max), regulated

8. (2X) USB-A PORT

   5V, up to 2.4A(12W max regulated)

9. usb-c pd port

   5-12v, up to 3.0A (18W max) regulated

Chainable

With Yeti Link and Tank Expansion batteries

Simultaneous Recharge & Discharge

Yes

Weight

69.78 lbs (31.65kg)

Dimensions

15.25” x 10.23” x 13.6 in (38.74 x 25.98 x 34.54 cm)

Operating usage temperature

32-104 F (0-40C)

battery capacity

842.4Ah @ 3.6V

Single cell equivalent capacity

842.4Ah @ 3.6V

Cell chemistry

LI-ion NMC

tech

CHARGE TIMES

• Yeti 400: 3-6 Hours*
• Yeti 400 Lithium: 4-7 Hours*
• Yeti 500X: 3-6 Hours*
• Yeti 1000 Lithium: 8-16 Hours
• Yeti 1400 Lithium: 11-22 Hours
• Yeti 1500X: 9-18 Hours
• Yeti 3000 Lithium: 18-36 Hours
• Yeti 3000X: 18-36 Hours
• Yeti 6000X: 35-70 Hours

GENERAL

• Product SKU: 32409
• Weight: 42 lbs (19 kg)
• Dimensions (folded): 40 x 26.75 x 3.5 in (101.6 x 70 x 8.9 cm)
• Dimensions (unfolded): 40 x 53.5 x 1.75 in (101.6 x 140 x 4.4 cm)
• Cable Length: 6ft
• Warranty: 2 years

PORTS

• USB-A port (output): 5V, up to 2.4A (12W max), regulated
• USB-C port (output): 5 - 12V, up to 3.0A (18W max), regulated
• USB-C PD port (input / output): 5 - 20V, up to 3.0A (60W max), regulated
• 6mm port (output, 6mm): 12V, up to 10A (120W max), regulated
• 12V car port (output): 12V, up to 13A (160W max), regulated
• 12V High Power Port (output): 12V, up to 30A (360W max), regulated (front face/under lid)
• 120V AC Inverter: 120VAC 60Hz, 16.5A (2000W, 3500W surge) (output, pure sine wave)
• Charging port (input, 8mm): 14-50V, up to 10A (150W max) (front face/under lid)
• High Power charging port (input): 14-50V, up to 50A (600W max)
• Expansion Module port Covered port under the lid. To be used with Goal Zero expansion modules only.

tech2

CHARGE TIMES

• AC Wall Charger
• 230W: 14 Hours
• 600W: 6 Hours
• Solar
• 100W (Boulder/Nomad 100 (BC) ): 36-72 Hours
• 200W (Boulder (BC/Nomad) ): 18-36 Hours
• 400W (Boulder/Nomad 200 X 2): 9-18 Hours
• 600W (Boulder/Nomad 200 X 3): 6-12 Hours
• 800W (Boulder/Nomad 200 X 4): 6-9 Hours
• 1200W (Boulder/Nomad 200 X 6): 6 Hours

BATTERY DETAILS

• Cell chemistry: Li-ion NMC
• Pack capacity: 3032Wh (10.8V, 280.8Ah)
• Single Cell Equivalent Capacity: 842.4Ah @ 3.6V
• Pack Lithium Content: 253g
• Lifecycles: 500 Cycles to 80% capacity (Discharge rate: 1C, Full charge/discharge, Temp: 25C)
• Shelf-life: Charge every 3-6 months
• Management system: MPPT charge controller

PORTS

• High Power Port: 14-22V, up to 14A (200W max)

GENERAL

• Kit SKU: 44518
• Chainable: No
• Simultaneous Recharge & Discharge: Yes
• Product SKU: 36400
• Weight: 69.78 lbs (31.65 kg)
• Dimensions: 15.25 x 10.23 x 13.6 in (38.74 x 25.98 x 34.54 cm)
• Operating usage temperature:32-104 F (0-40 C)
• Warranty: 2 years

box1

YETI 3000X + Boulder 200 HIGHLIGHTS

This solar generator can recharge from the sun in as little as 18 hours.

Solar panels designed for more portable, rugged use, with durable aluminum frame.

A sustainable energy source with no noise and no fumes.

box2

BOULDER 200 BRIEFCASE HIGHLIGHTS

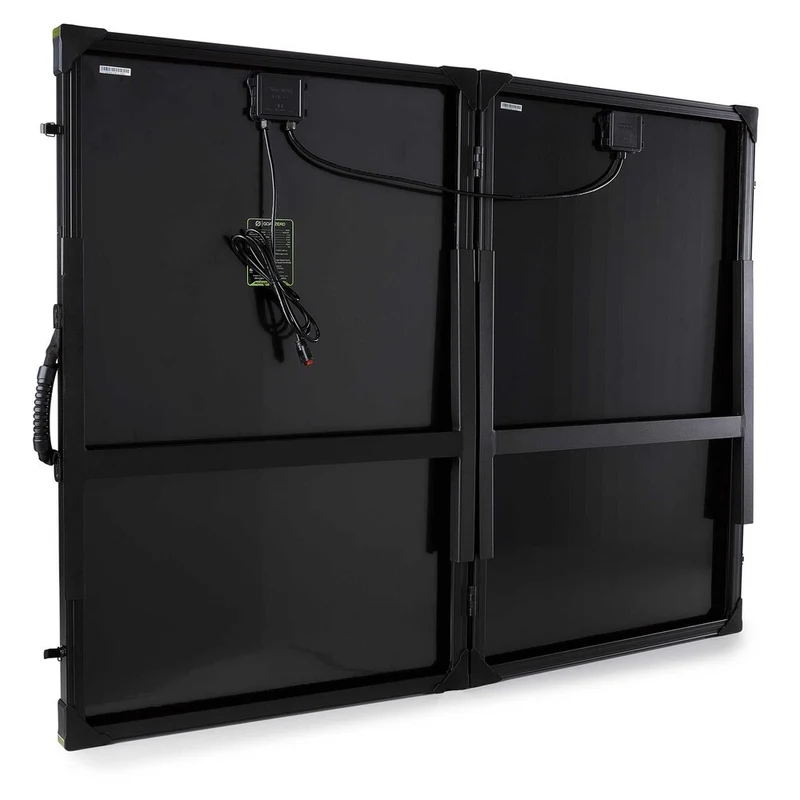

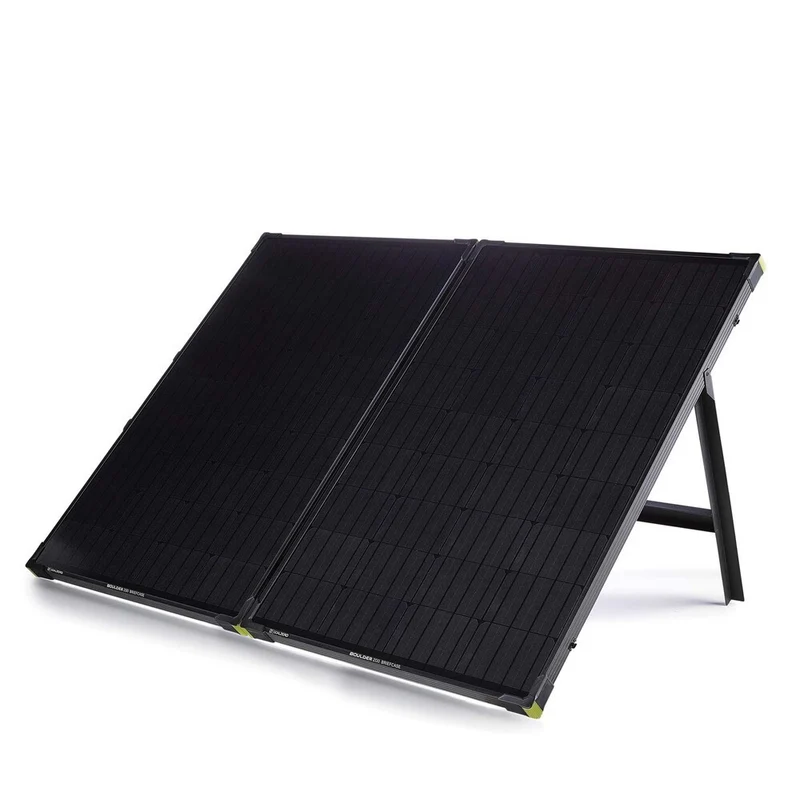

200 total Watts - two 100-Watt panels (14-21.8V) chained together and connected by a hinge.

Built with strong tempered glass and an aluminum frame with added corner protection.

Included is a protective canvas bag for easy transport and carrying.

TIPS & TRICKS FOR USING SOLAR PANELS

• The solar panel does not hold a charge - it only produces power when it is exposed to sunlight and connected to a power station or bank.

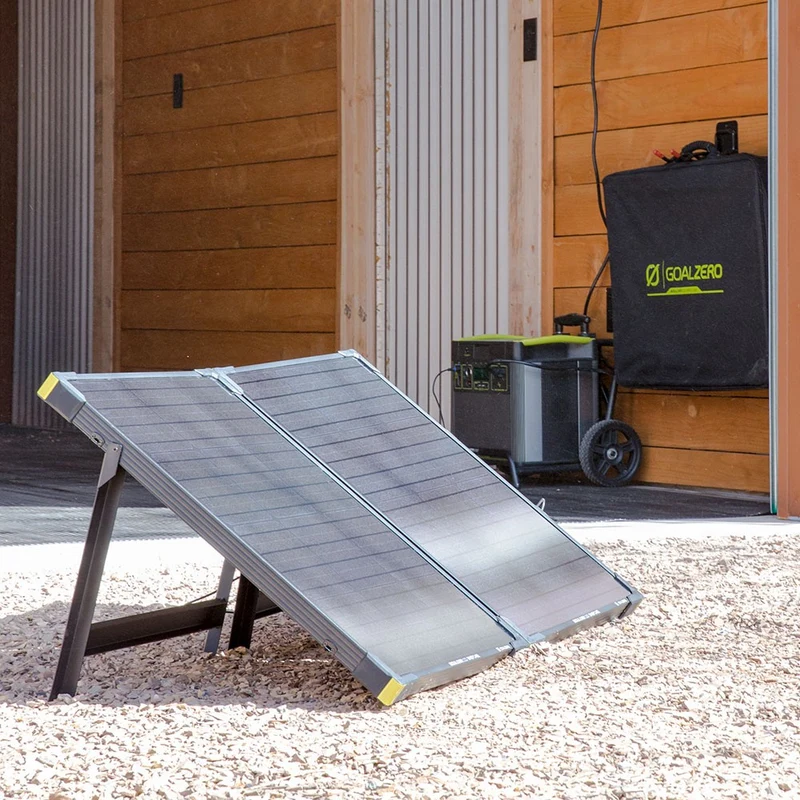

• Optimize solar panel efficiency by positioning them south-facing at a 45-degree angle.

• For faster recharging, use multiple solar panels.

box3

THREE WAYS TO RECHARGE

• FROM THE SUN
  Recharge from the sun by connecting a compatible solar panel. Charge times are dependent on the size of the solar panel. The Boulder 200 Briefcase will provide 200W of solar and fully recharge the Yeti 3000X in 18-36 hours of sun.
• FROM THE WALL
  Plug it into the wall. Fully recharges in 14 hours using the included 230W Power Supply AC Wall Charger. Not quick enough? Drop your recharge time to 6 hours using the available 600W Power Supply.
• FROM THE CAR
  The Goal Zero Yeti 3000X can be charged by plugging into your 12V adapter using the Goal Zero Yeti Lithium 12V Car Charging Cable. NOTE: Do not attempt to charge your Yeti Lithium from a 12V source using a regular charging cable. Doing so may cause damage to the unit.
